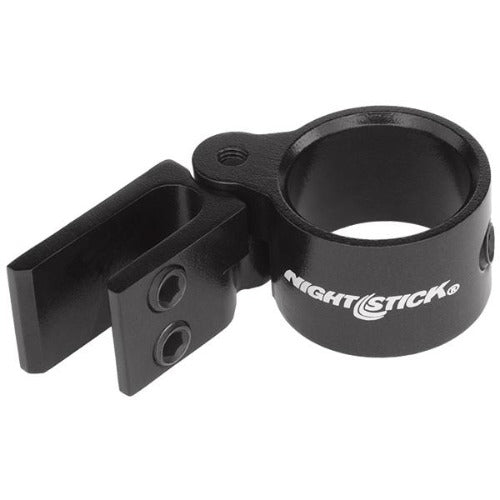

Multi-Angle Helmet Mount

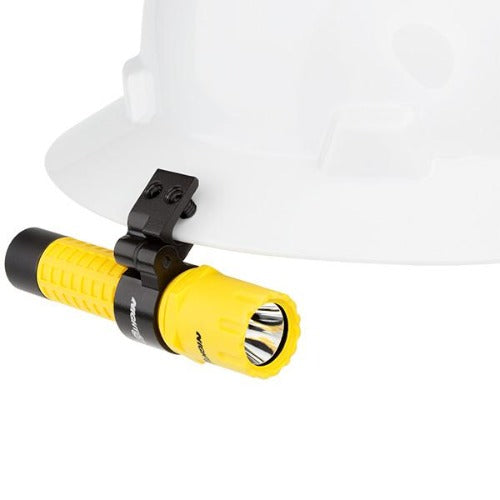

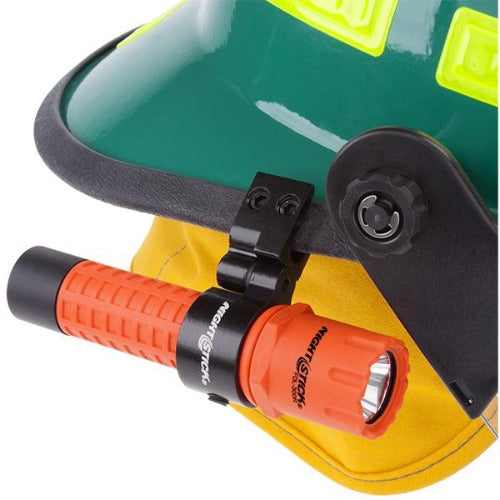

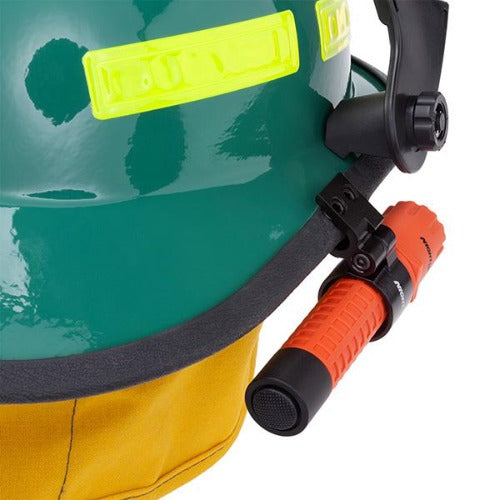

The Multi-Angle Helmet Mount is a mounting bracket for attaching a flashlight that has a 1” handle diameter to the brim of virtually any Fire Helmet or Hard Hat.

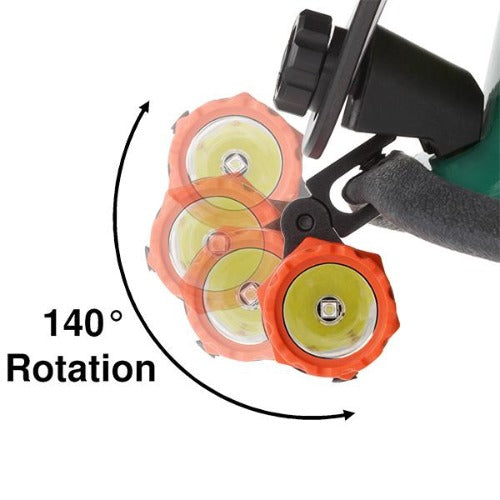

The mount can be attached to either side of the helmet to provide hands-free illumination for the wearer. Additionally, the user can set the angle of the mount through 140 degrees of adjustment to provide clearance around face shields, goggles or other helmet-mounted equipment.

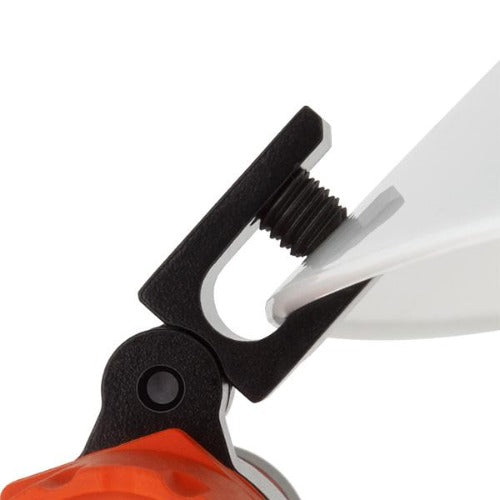

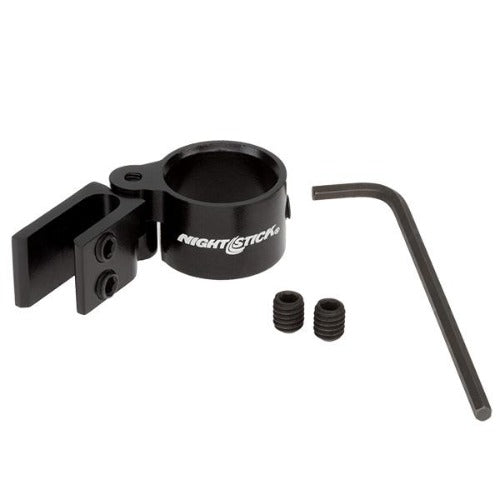

The NS-HMC1 comes with the mount, 1 – Light Mounting Allen Set Screw, 2 – 5/16”-18 X 1/4” Brim Mounting Allen Set Screws (for Fire Helmets), 2 – 5/16”-18 X 3/8” Brim Mounting Allen Set Screws (for Hard Hats) and the 5/16” Allen Wrench.

The NS-HMC1 meets the requirements of NFPA-1971-8.6 (2013).
