These incorporate Duo-Safety's exclusive tongue and groove arrangement. This outstanding construction design holds the sections firmly and rigidly, without brackets, hooks, or obstructions of any kind.
These compact ladders require a minimum of banking space - and have the extra advantage of being especially stable and rigid.

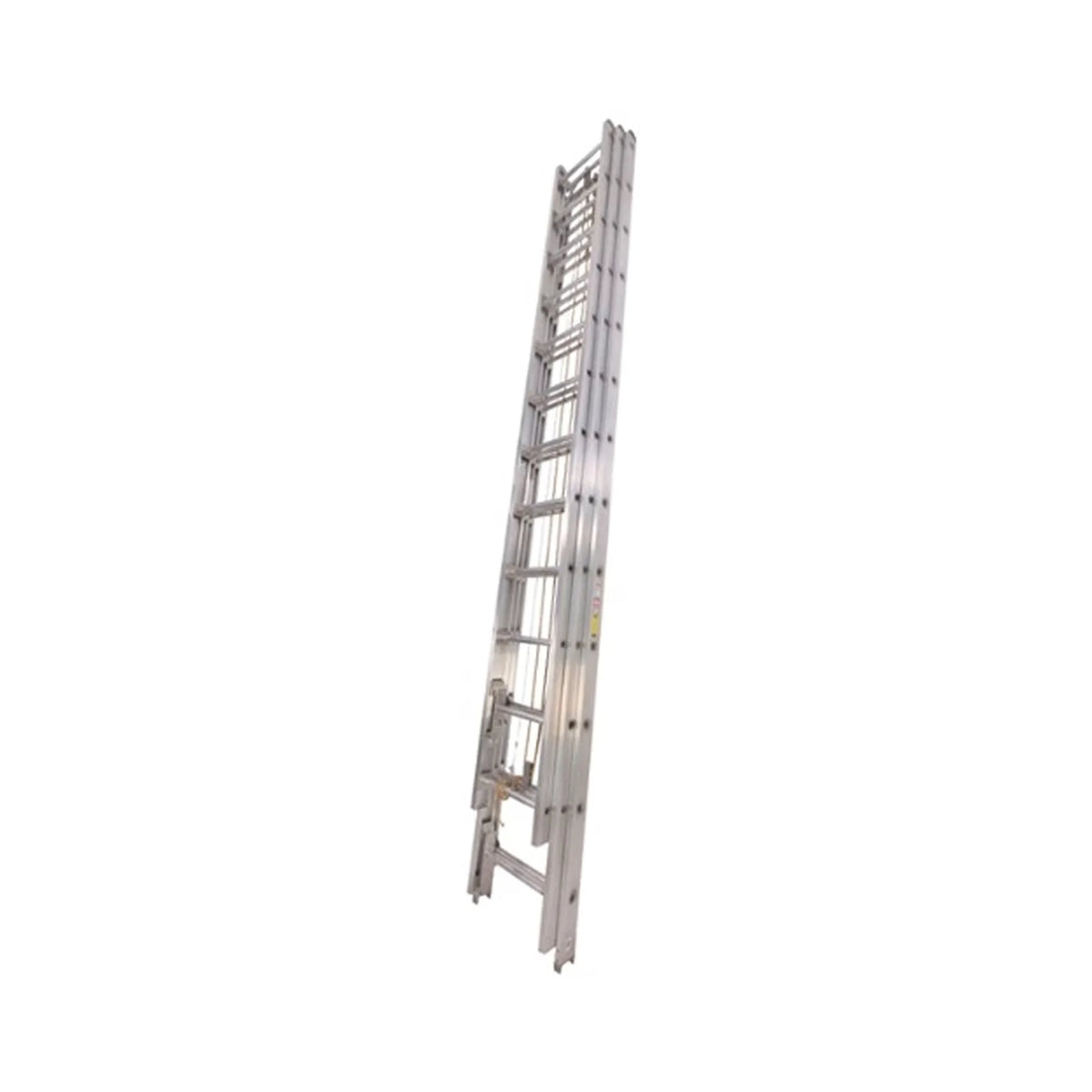

Series 1225-A:
- 3-3/4" Channel Rail
- 750 lb Duty Rated
- Prong Feet as Standard
- Rubber Safety Shoes Optional for Hard Surface Use
Series 1225-A, 3-Section Specifications:
Size |
Closed Length |
Width |
Banking Thickness |
Weight* |
28' |
12' 11" |
24" |
9.125" |
107 lbs |
30' |
13' 3" |
24" |
9.125" |
108 lbs |
35' |
15' 3" |
24" |
9.125" |
129 lbs |
All dimensions listed are N.F.P.A. Design Verification Standards. Variations occur in each product of approximately +/- .125" due to the type of rivets, nuts, bolts etc. used.
* Weight listed is actual weight of product only.
