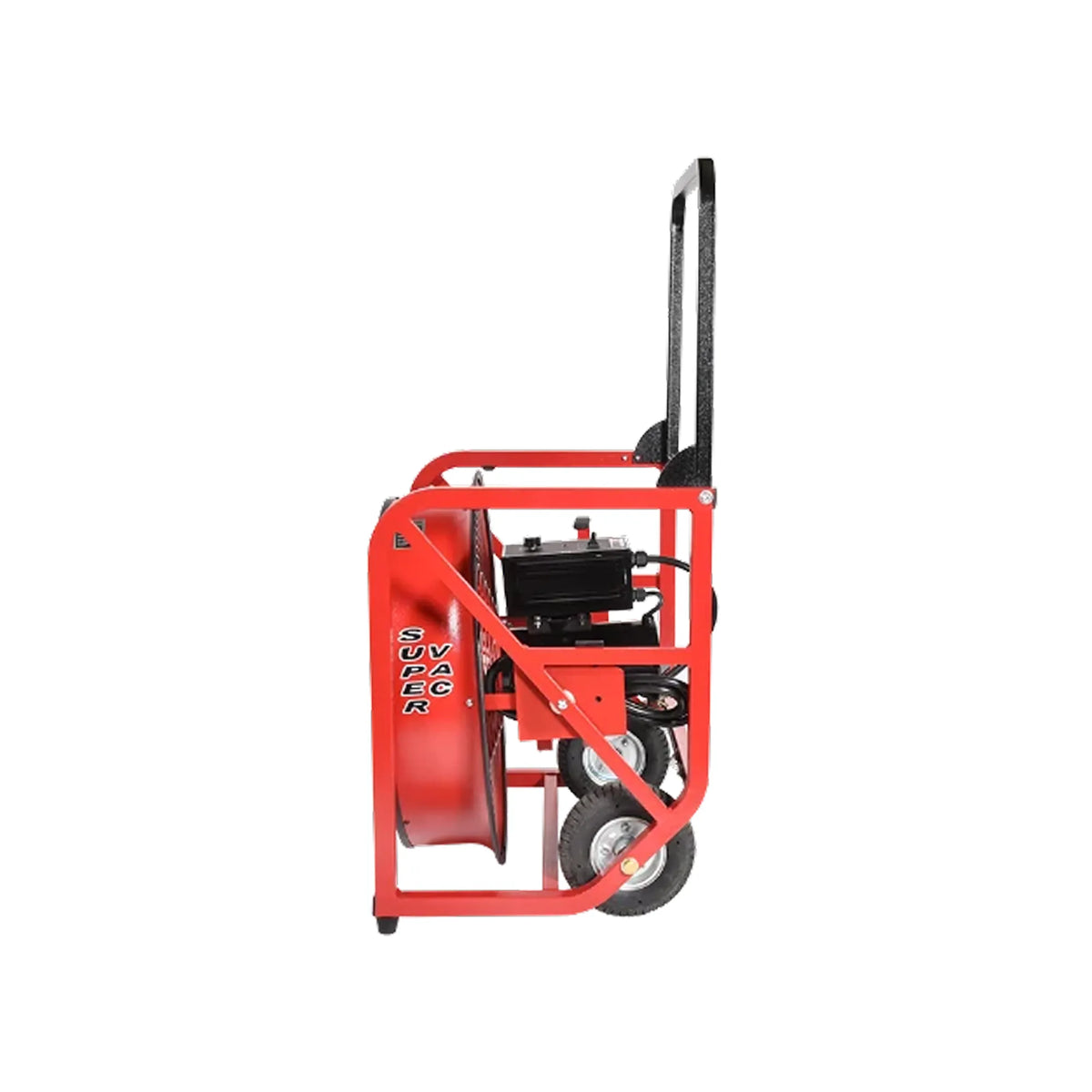

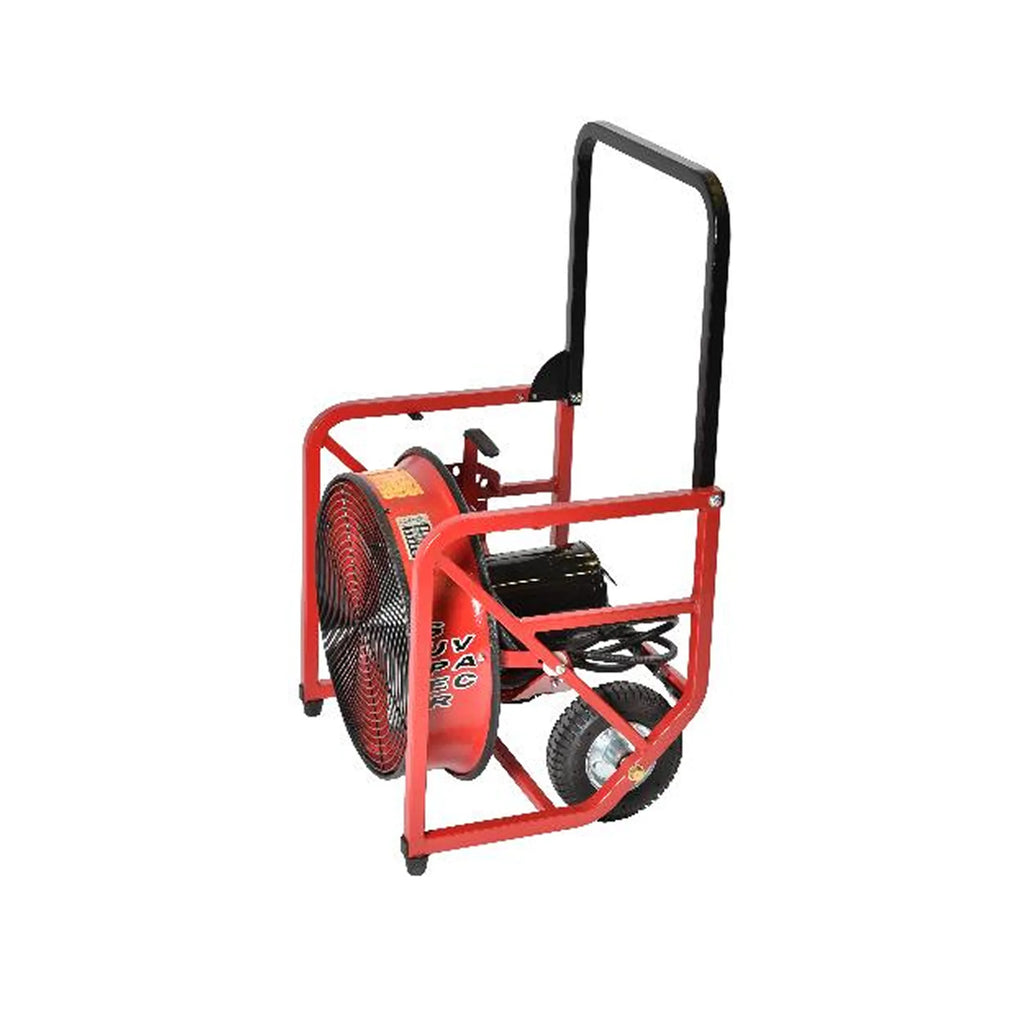

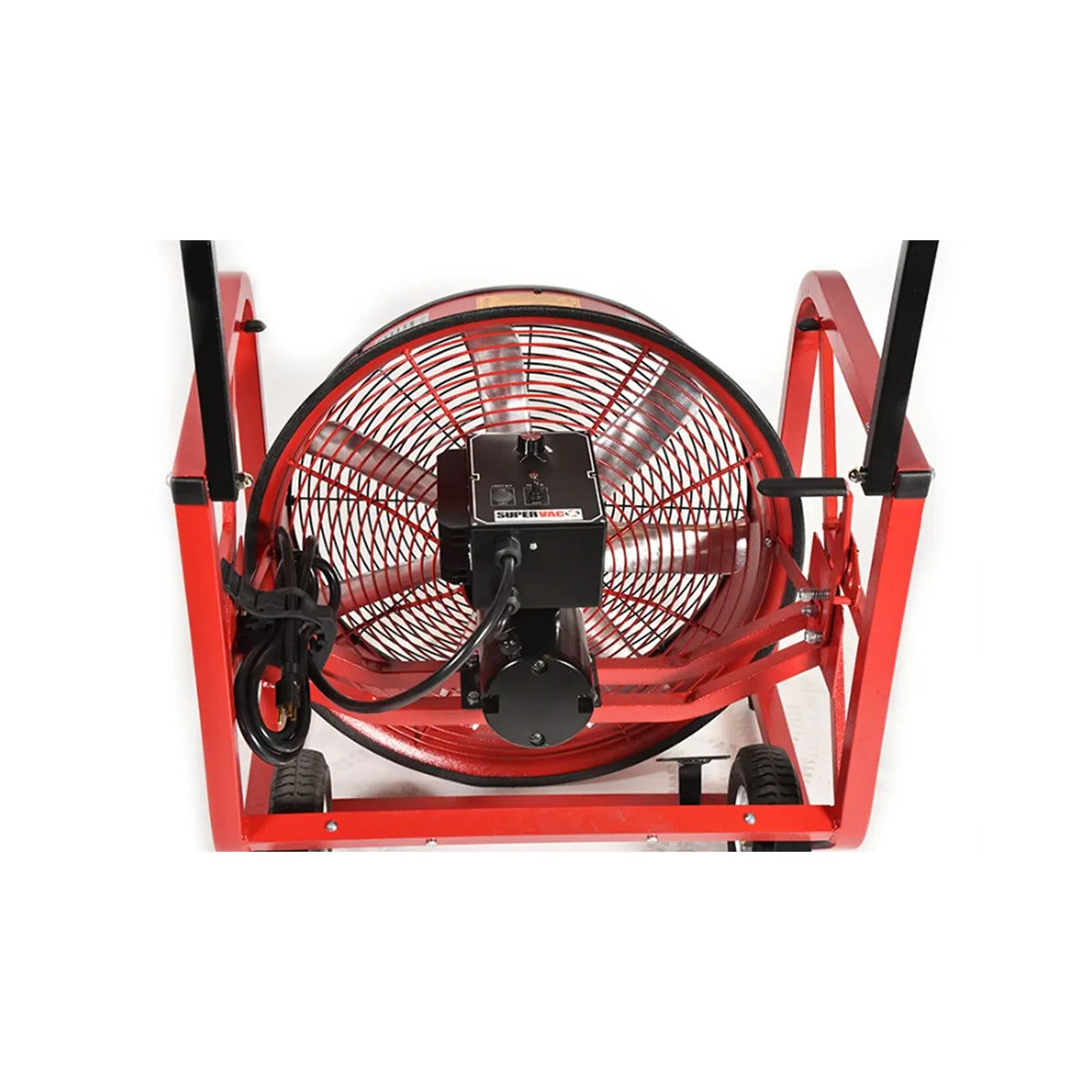

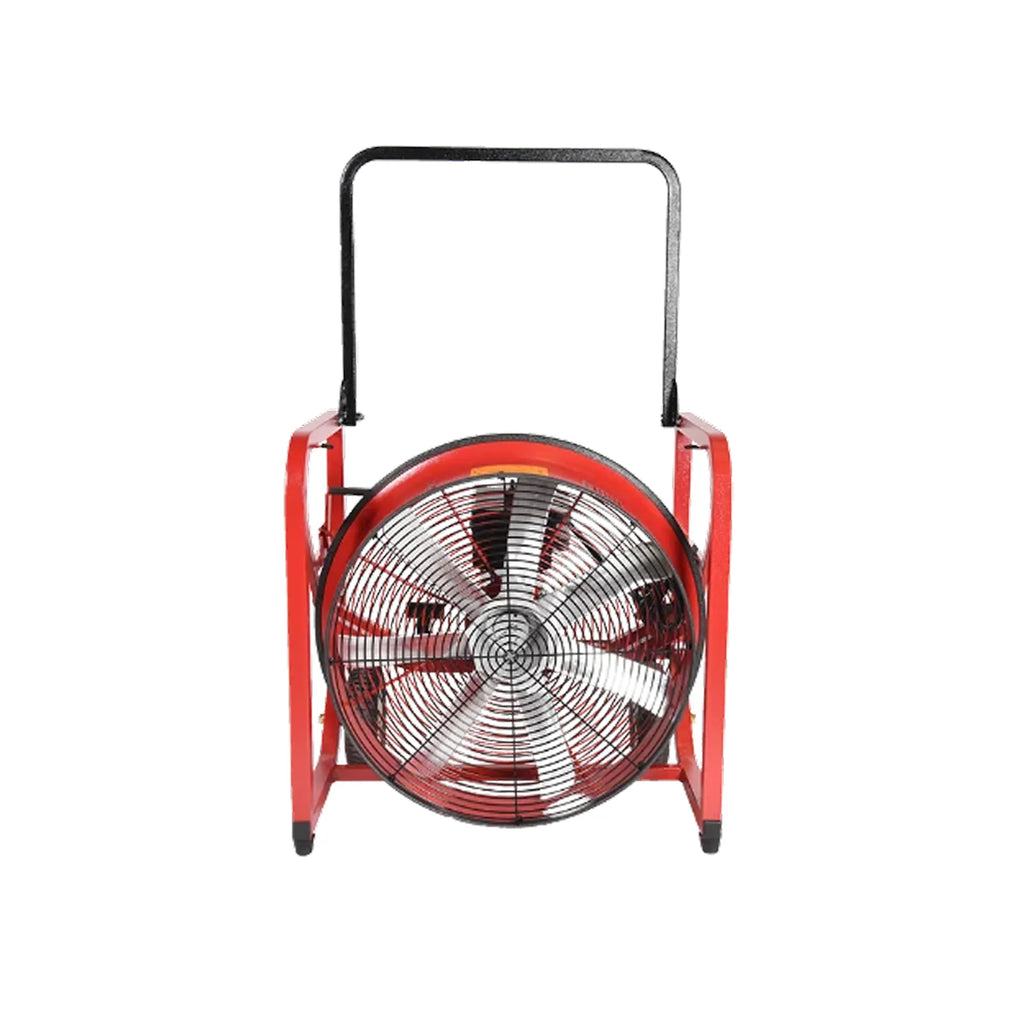

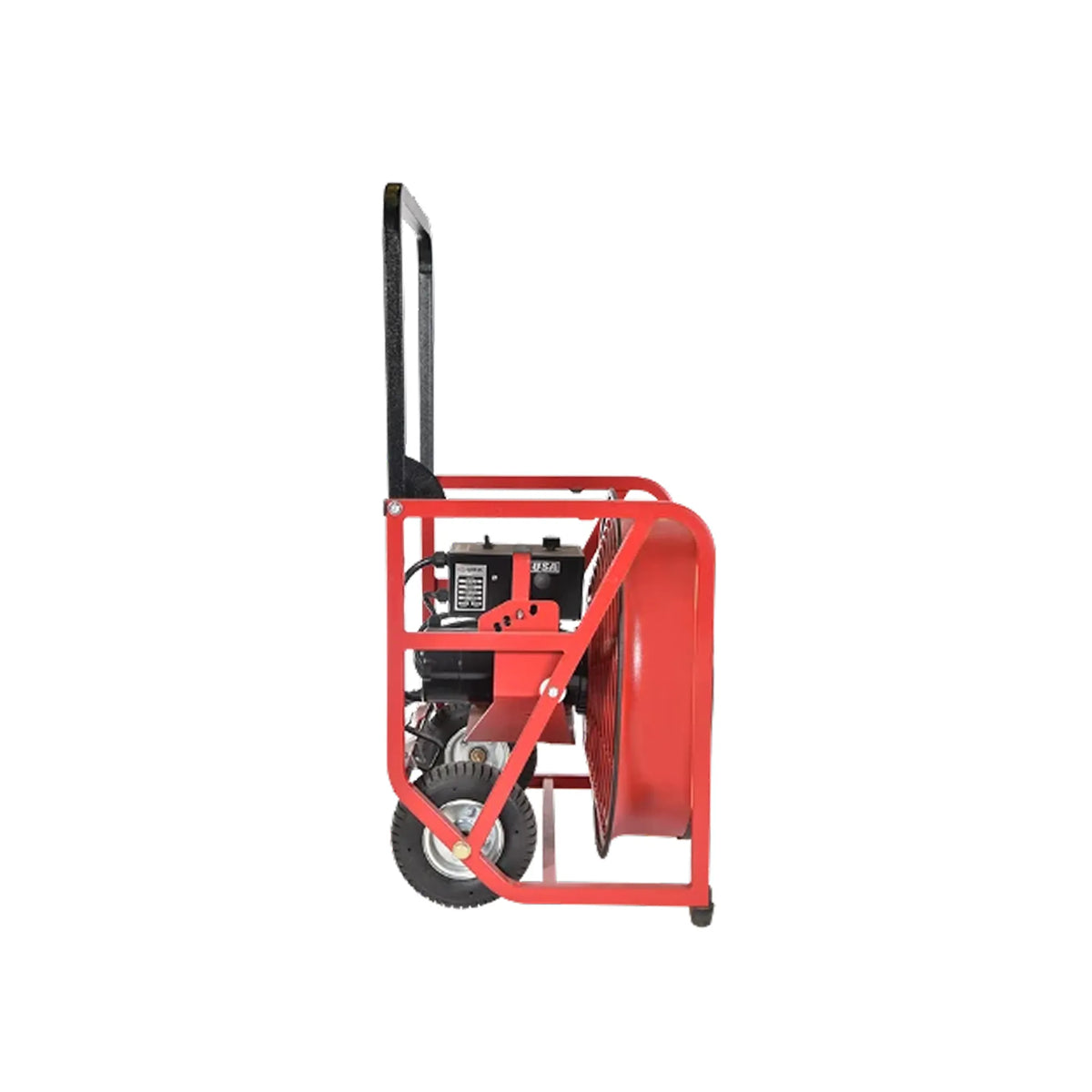

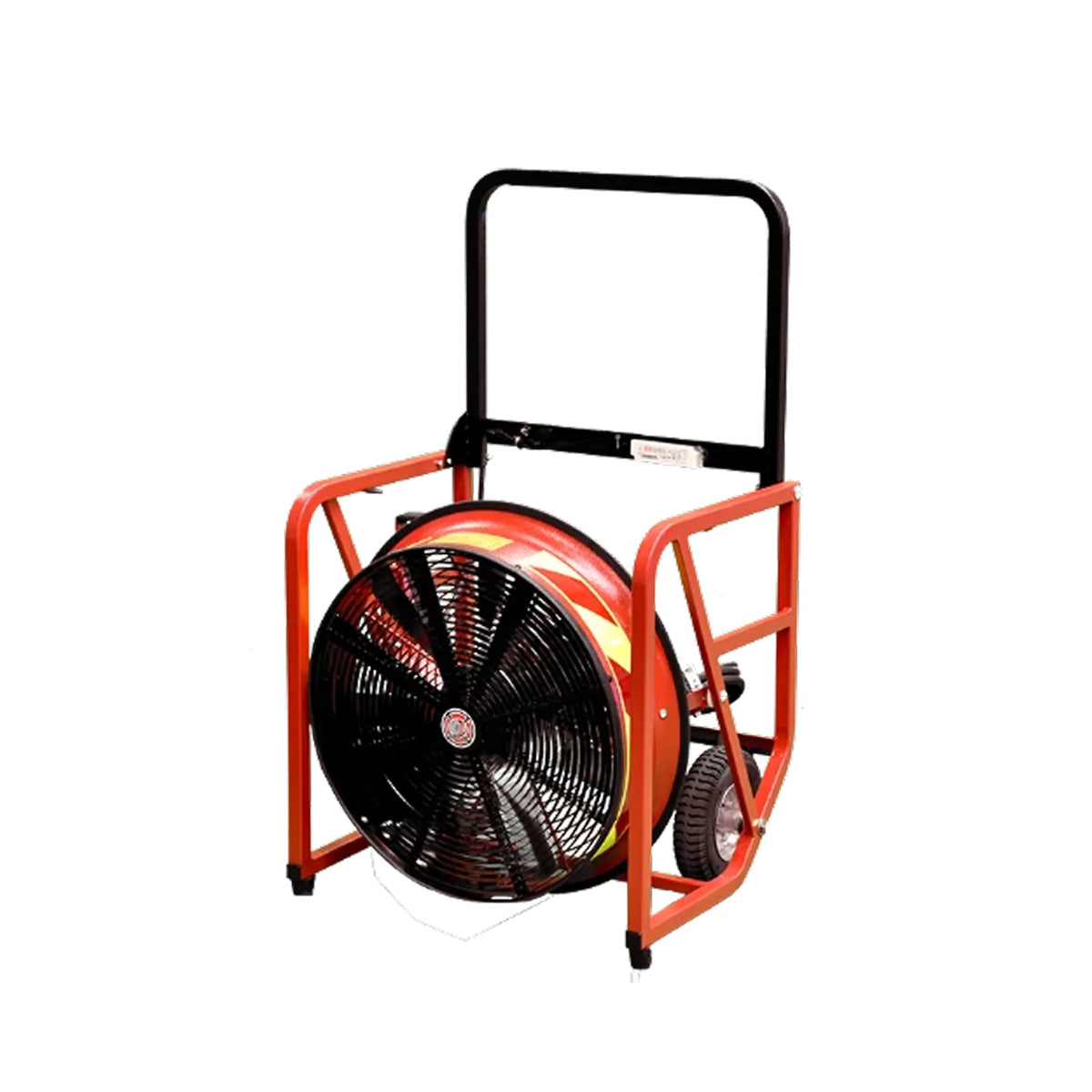

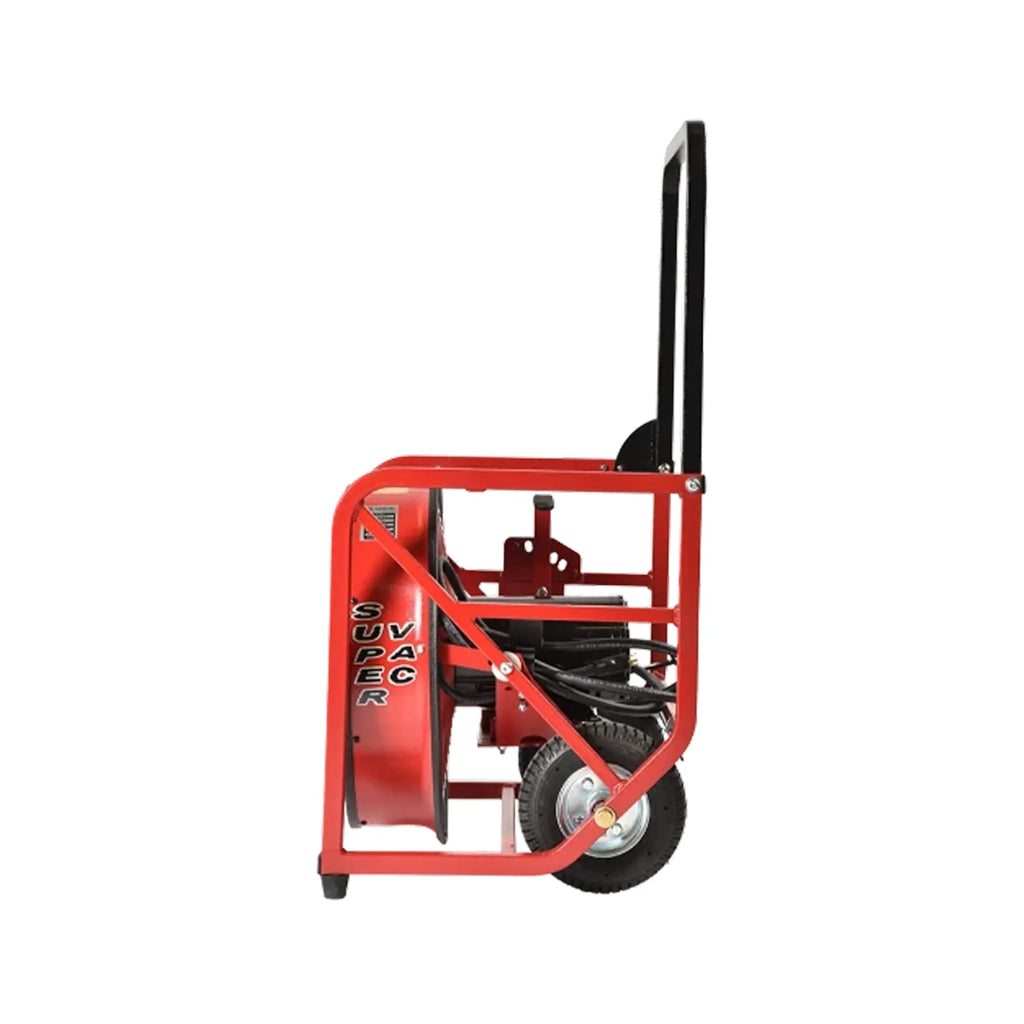

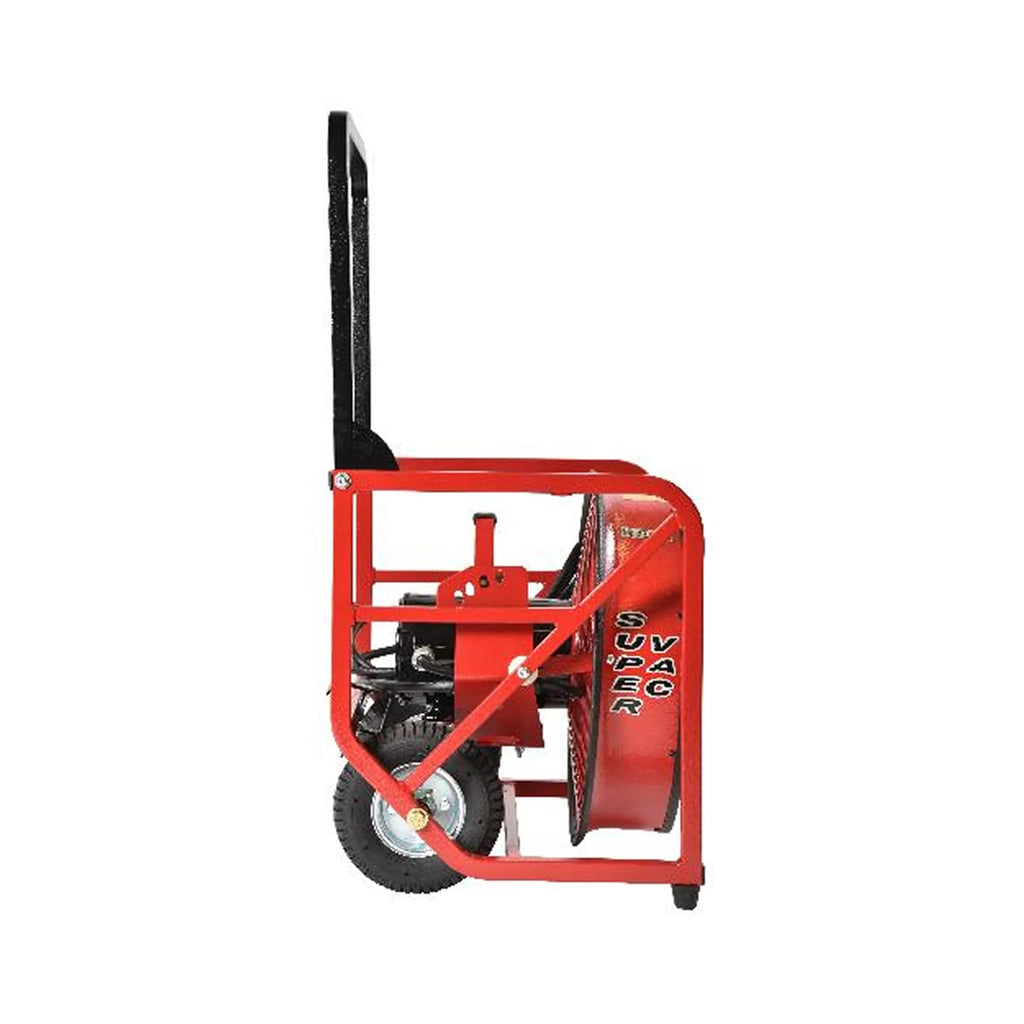

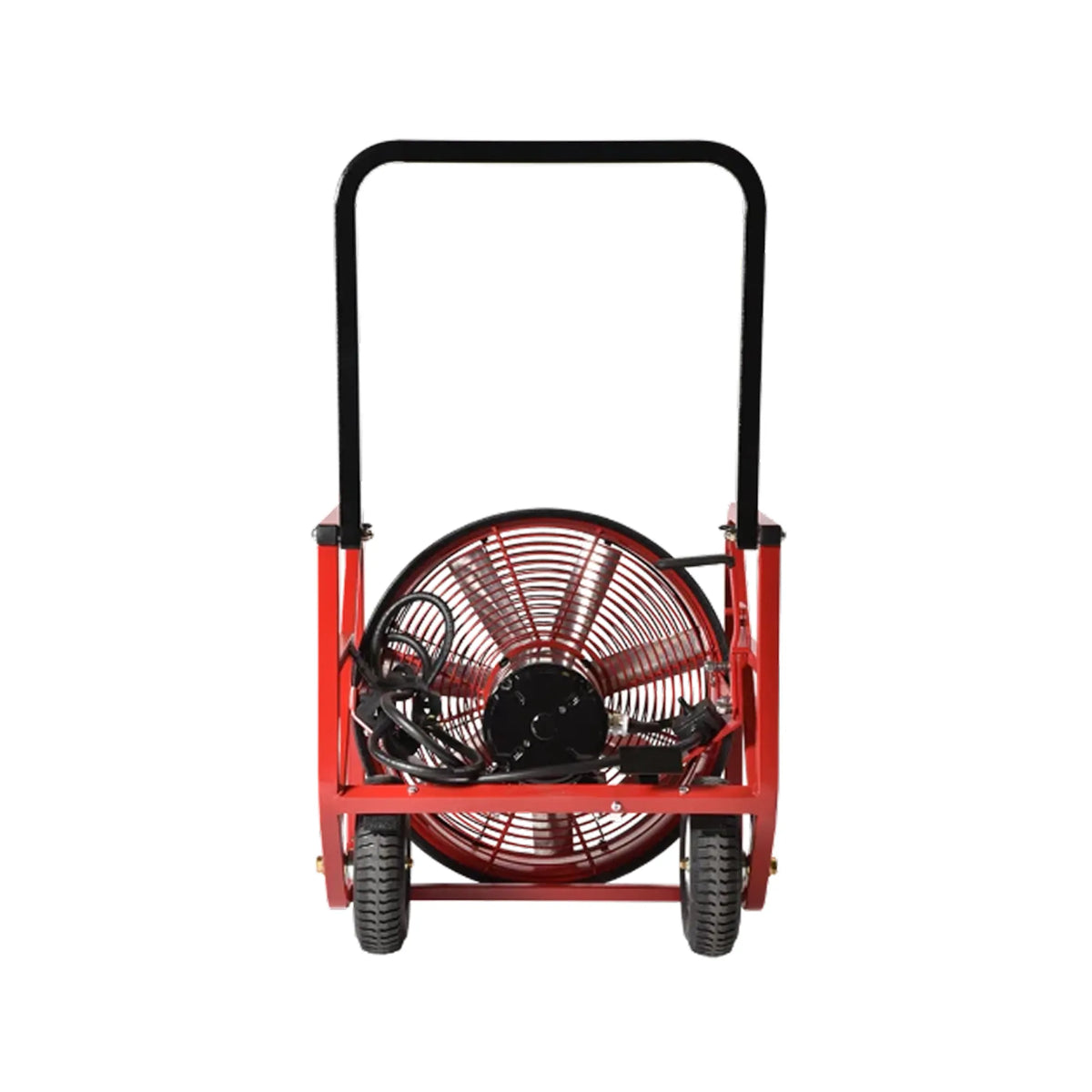

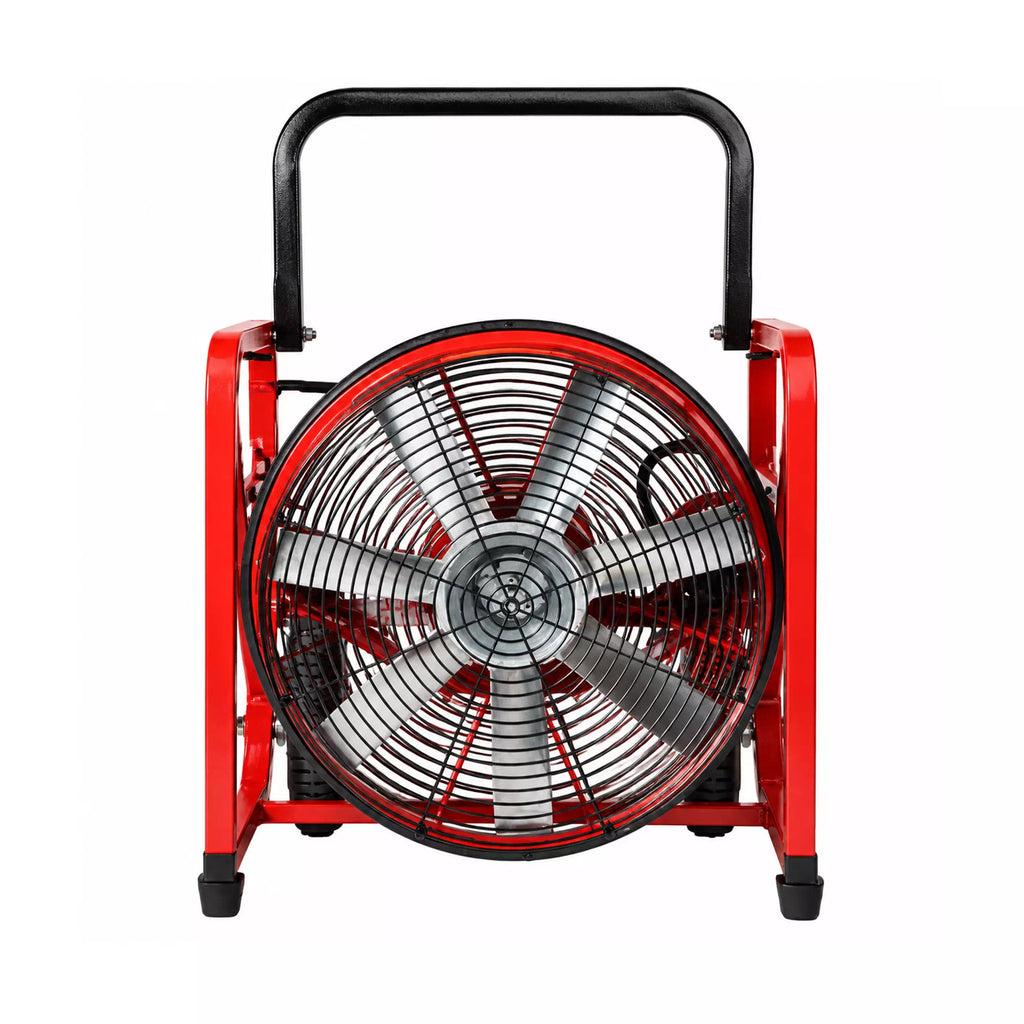

This PPV electric fan by Super Vac provides the perfect combination of size and power for departments looking for an economical, everyday PPV.
Featuring a durable steel-frame, roll-cage design with 4-position tilt, this PPV has proven itself over the years.
Features:
- Full Roll-Cage Frame: Protects key components
- 4-Position Tilt Frame with Lever: Provides -10°, 0°, 10°, 20°
- Fold-Down Ergonomic Handle: Folds down into frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
- Flat-Proof Rubber Tires: Eliminates flat tires; rolls up stairs/curbs easily
- Single-Piece Cast Aluminum Blade: Holds up better than plastic in high heat
- Precision-Spun Steel Shroud: Provides durability with max airflow
- Air Cone Guard: Classic design for maximum airflow; StreamShaper Guard optional
|
Model |
Weight |
Motor |
RPM |
Start |
Run |
Setback |
Angle |
AMCA Certified Airflow |
Dimensions |
|
716-E2 |
68 lbs 31 kg |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V |
1,750 |
4,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
5,890 cfm 10,007 cmh |
20" high 20.50" wide 16" deep |
|
716-EVS |
72 lbs 33 kg |
RAE, TEAO, variable speed, 1.5 HP, 60/50hz, 115/230V AC |
2,500 |
2,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
9,950 cfm 16,900 cmh |
20" high 20.50" wide 16" deep |
|
716-EXP |
78 lbs 35.5 kg |
Bluffton, single speed – hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,750 |
4,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
5,890 cfm 10,007 cmh |
20" high 20.50" wide 16" deep |
|
718-E2 |
82 lbs 37 kg |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V |
1,750 |
4,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
6,378 cfm 10,836 cmh |
22" high 23.50" wide 19.50" deep |
|
718-EVS |
86 lbs 39 kg |
RAE, TEAO, variable speed, 1.5 HP, 50/60Hz, 115/230V AC |
2,500 |
2,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
10,744 cfm 18,254 cmh |
22" high 23.50" wide 19.50" deep |
|
718-EXP |
92 lbs 42 kg |
Bluffton, single speed – hazardous location rated for Class 1 Group D, 1 HP, 50/56Hz, 115/230V AC |
1,750 |
4,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
6,378 cfm 10,836 cmh |
22" high 23.50" wide 19.50" deep |
|
720-E2 |
88 lbs 40 kg |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V |
1,750 |
4,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
9,007 cfm 15,302 cmh |
25.50" high 26" wide 19.50" deep |
|
720-EVS |
92 lbs 42 kg |
RAE, TEAO variable speed, 1.5 HP, 50/60Hz, 115/230V AC |
2,400 |
2,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
13,788 cfm 23,426 cmh |
25.50" high 26" wide 19.50" deep |
|
720-EXP |
98 lbs 45 kg |
Bluffton, single speed – hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,750 |
4,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
9,007 cfm 15,302 cmh |
25.50" high 26" wide 19.50" deep |
|
724-E2 |
104 lbs 47.5 kg |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V |
1,750 |
4,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
13,320 cfm 22,630 cmh |
28" high 29.50" wide 21" deep |
|
724-EVS |
108 lbs 49 kg |
RAE, TEAO, variable speed, 1.5 HP, 50/60Hz, 115/230V AC |
2,400 |
2,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
16,370 cfm 27,815 cmh |
28" high 29.50" wide 21" deep |
|
724-EXP |
114 lbs 52 kg |
Bluffton, single speed – hazardous location rated for Class 1 Group D, 1HP, 50/60Hz, 115/230V AC |
1,750 |
4,000 w 15-amp circuit |
1,500w |
6 ft 1.8 m |
18° |
13,320 cfm 22,630 cmh |
28" high 29.50" wide 21" deep |
Five (5) year warranty.
