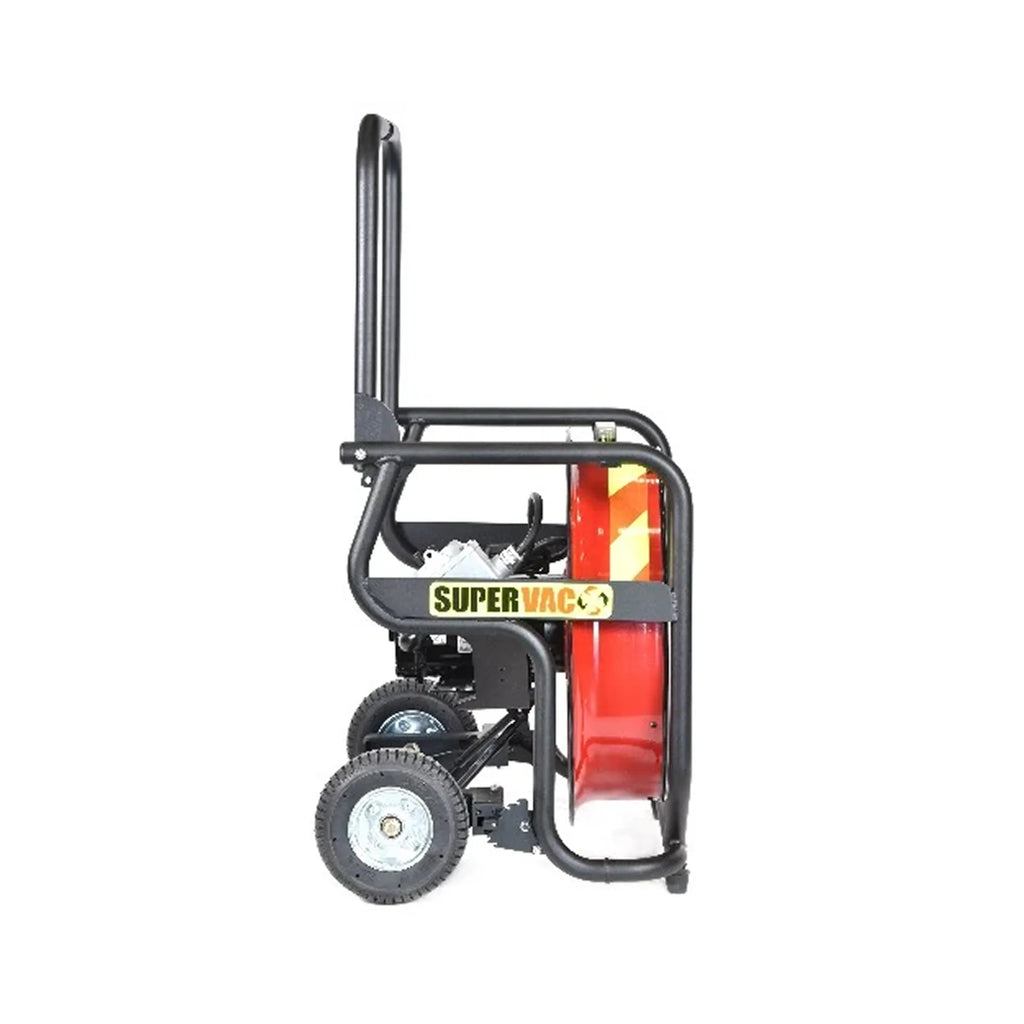

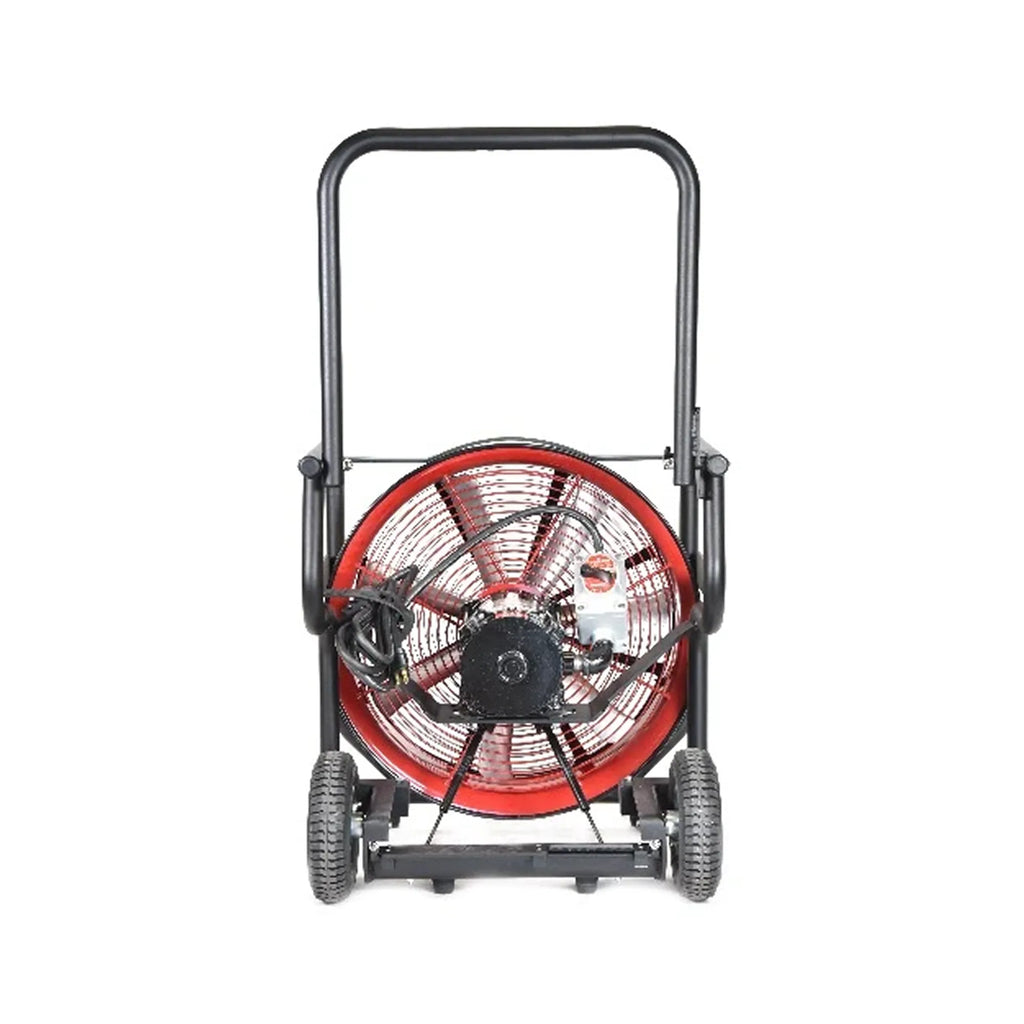

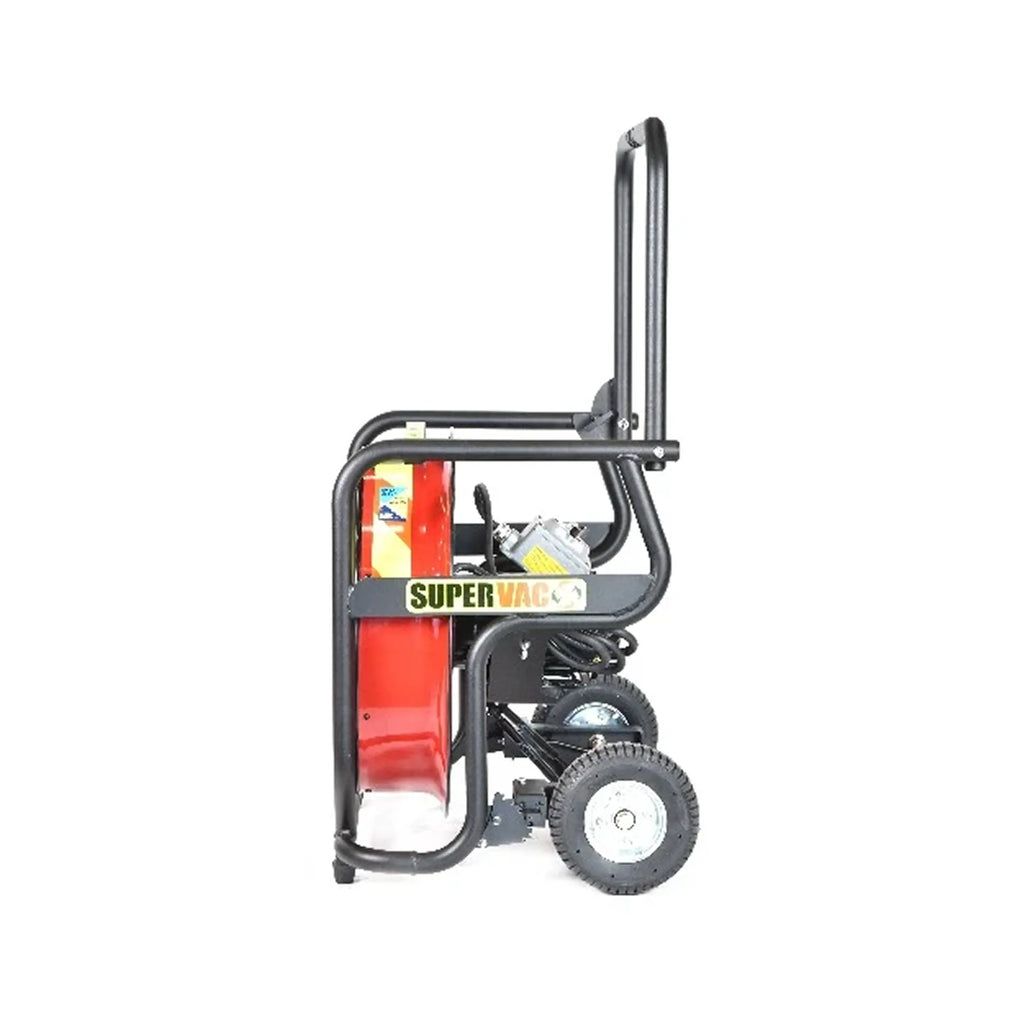

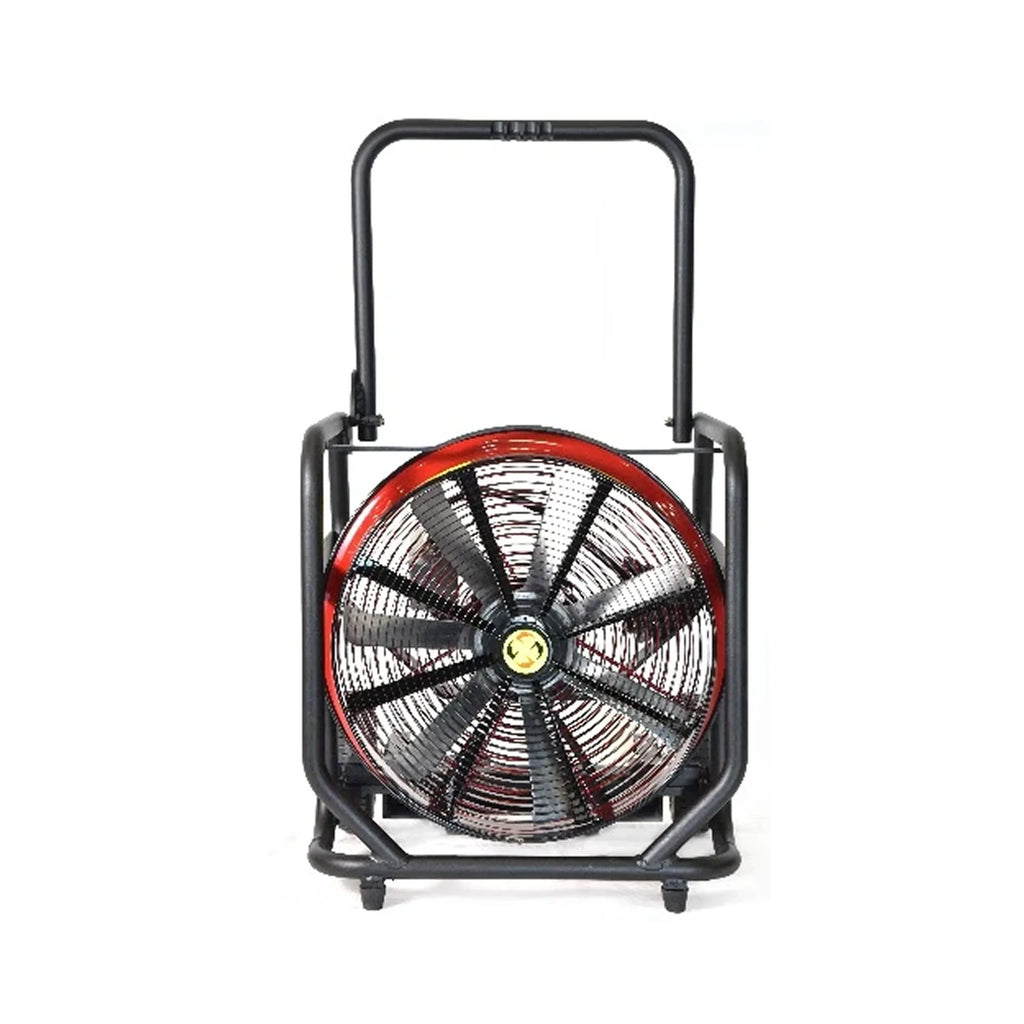

This electric PPV fan by Super Vac provides unmatched durability in the most compact, powerful size — perfect for jurisdictions with a mixture of residential and commercial structures.
Featuring a patent-pending frame design that is simple and intuitive to position on the fireground, the Valor series is engineered to ease the toughest ventilation challenges.
Features:
- Full-Roll Cage Frame: Features a tough, tubular aluminum frame to protect key components; delivers a lightweight design (15% lighter than steel frames)
- 7-Position Tilt Frame with Step Pad: Provides positive/ negative angles; allows for fan placement on stairs; allows tall firefighters to easily move fan
- Fold-Down Ergonomic Handle: Folds down into frame for compact storage; features full-width handle for easy grip with heavy-duty gloves
- Flat-Proof Rubber Tires: Eliminates flat tires; rolls up stairs and curbs easily; tires are placed on the back of the frame so that firefighters never have to put themselves between the PPV and the fire during setup
- Single-Piece Cast Aluminum Blade: Holds up better than plastic in high heat
- Precision-Spun Steel Shroud: Provides durability with maximum airflow
- StreamShaper Guard: Standard guard, designed for farther setback; Air Cone Guard available by request
- AMCA Certified Airflow: Ratings listed below are based on tests in accordance with Air Movement Control Association (AMCA publication 240) and comply with the AMCA certified ratings program
Model |
Weight |
Motor |
RPM |
Start |
Run |
Setback |
Angle |
AMCA Certified Airflow |
Dimensions |
V18-ES |
80lbs 36kg |
Bluffton, single speed, 1 Hp, 50/60Hz, 115/230V AC |
1,783 |
4,000w 15-amp circuit |
1,500w |
9 ft 2.7 m |
13° |
6,378 cfm 10,836 cmh |
23.50" high 22" wide 21" deep |
V18-EV |
84lbs 38kg |
RAE, TEAO, variable speed 1.5 HP, 50/60Hz, 115/230V AC |
2,368 |
2,000w 15-amp circuit |
1,500w |
9 ft 2.7 m |
11.5° |
11,709 cfm 19,894 cmh |
23.50" high 22" wide 21" deep |
V18-EX |
90lbs 41kg |
Bluffton, single speed – hazardous location rated for Class 1 Group D, 1 Hp, 50/60Hz, 115/230V AC |
1,783 |
4,000w 15-amp circuit |
1,500w |
9 ft 2.7 m |
13° |
6,378 cfm 10,836 cmh |
23.50" high 22" wide 21" deep |
V20-ES |
82lbs 37kg |
Bluffton, single speed, 1 HP, 50/60Hz, 115/230V |
1,758 |
4,000w 15-amp circuit |
1,500w |
9 ft 2.7 m |
10° |
9,007 cfm 15,302 cmh |
26.50" high 25" wide 21.50" deep |
V20-EV |
86lbs 39kg |
RAE, TEAO variable speed 1.5 HP 50/60 Hz, 115/230V AC |
3,131 |
2,000w 15-amp circuit |
1,500w |
9 ft 2.7 m |
11° |
13,788 cfm 23,426 cmh |
26.5" high 25" wide 21.5" deep |
V20-EX |
92lbs 42kg |
Bluffton, single speed – hazardous location rated for Class 1 Group D, 1 HP, 50/60Hz, 115/230V AC |
1,758 |
4,000w 15-amp circuit |
1,500w |
9 ft 2.7 m |
10° |
9,007 cfm 15,302 cmh |
26.50" high 25" wide 21.50" deep |
Five (5) year warranty. The motor shall be warranted by the motor manufacturer for a minimum of two (2) years.
